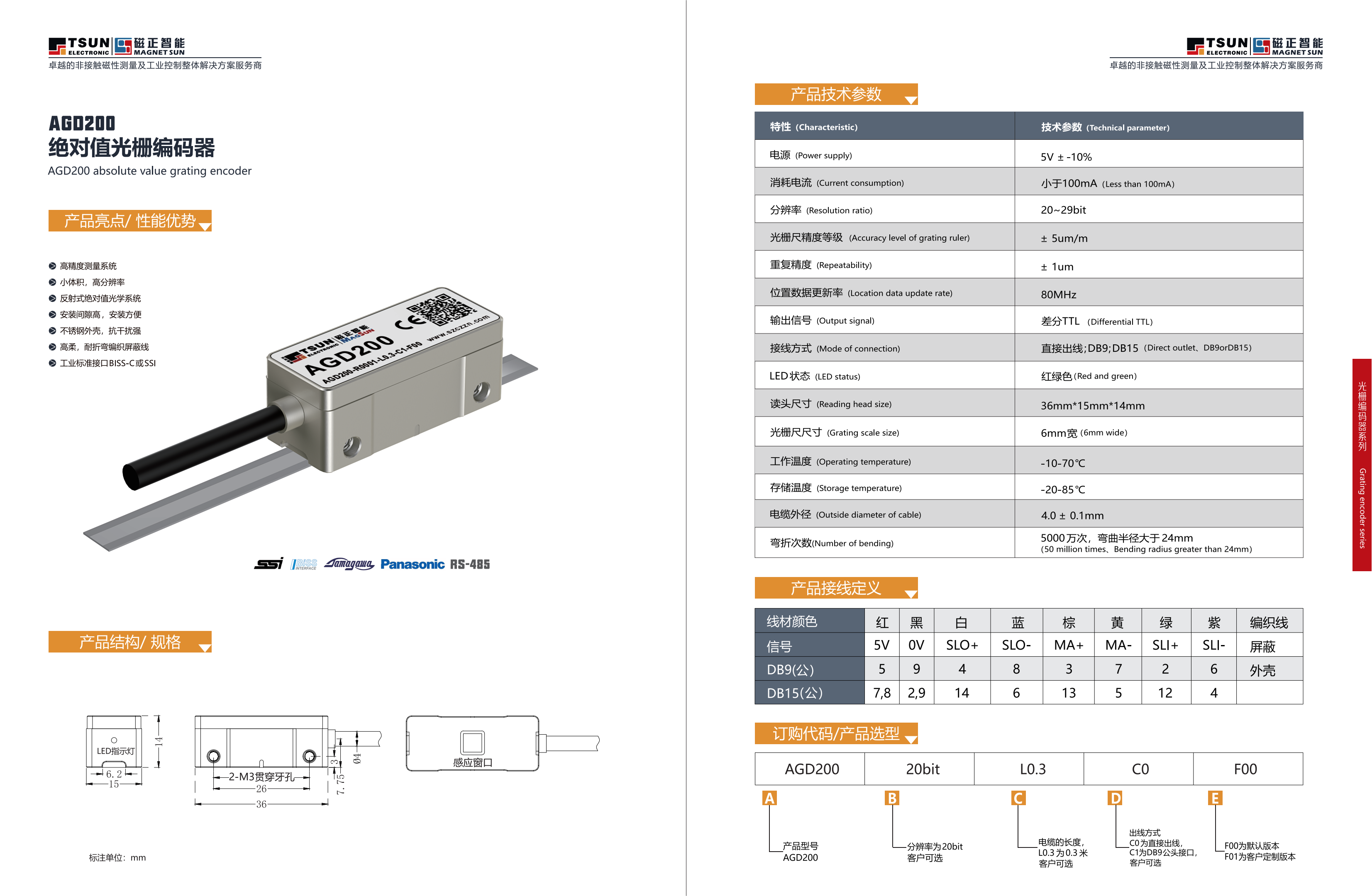

AGD200
Grating encoder
Product Overview
Specifications
Downloads
Inquiry
Product Description
AGD200
AGD200
AGD200
AGD200
AGD200
AGD200
AGD200
AGD200
AGD200
AGD200
The AGD200 absolute value grating encoder has been widely applied in fields such as automated manufacturing and metrological verification due to its excellent performance.
Features and Benefits
The AGD200 absolute value grating encoder features the following outstanding performance: reflective absolute value optical system; Industrial standard interface BISS-C or SSI High installation clearance and convenient installation; High-precision measurement system Small size, high resolution; Stainless steel shell, strong anti-interference ability; High-flexibility, bendable braided shielded wire.
Consult

Power supply: 5V

Current consumption: less than 100mA

Resolution: 20-29 bits

The accuracy grade of the grating ruler: ±5um/m

Repeatability accuracy: ±1um

Location data update rate: 80MHz

Output signal: Differential TTL

Wiring method: Direct wiring; DB9orDB15

Reader size: 36mm*15mm*14mm

Operating temperature: -10 to 70℃

Cable bending times: 50 million times, bending radius greater than 24mm
