LGD20
Grating encoder
Product Overview
Specifications
Downloads
Inquiry
Product Description
LGD20
LGD20
LGD20
LGD20
LGD20
LGD20
LGD20
LGD20
LGD20
LGD20

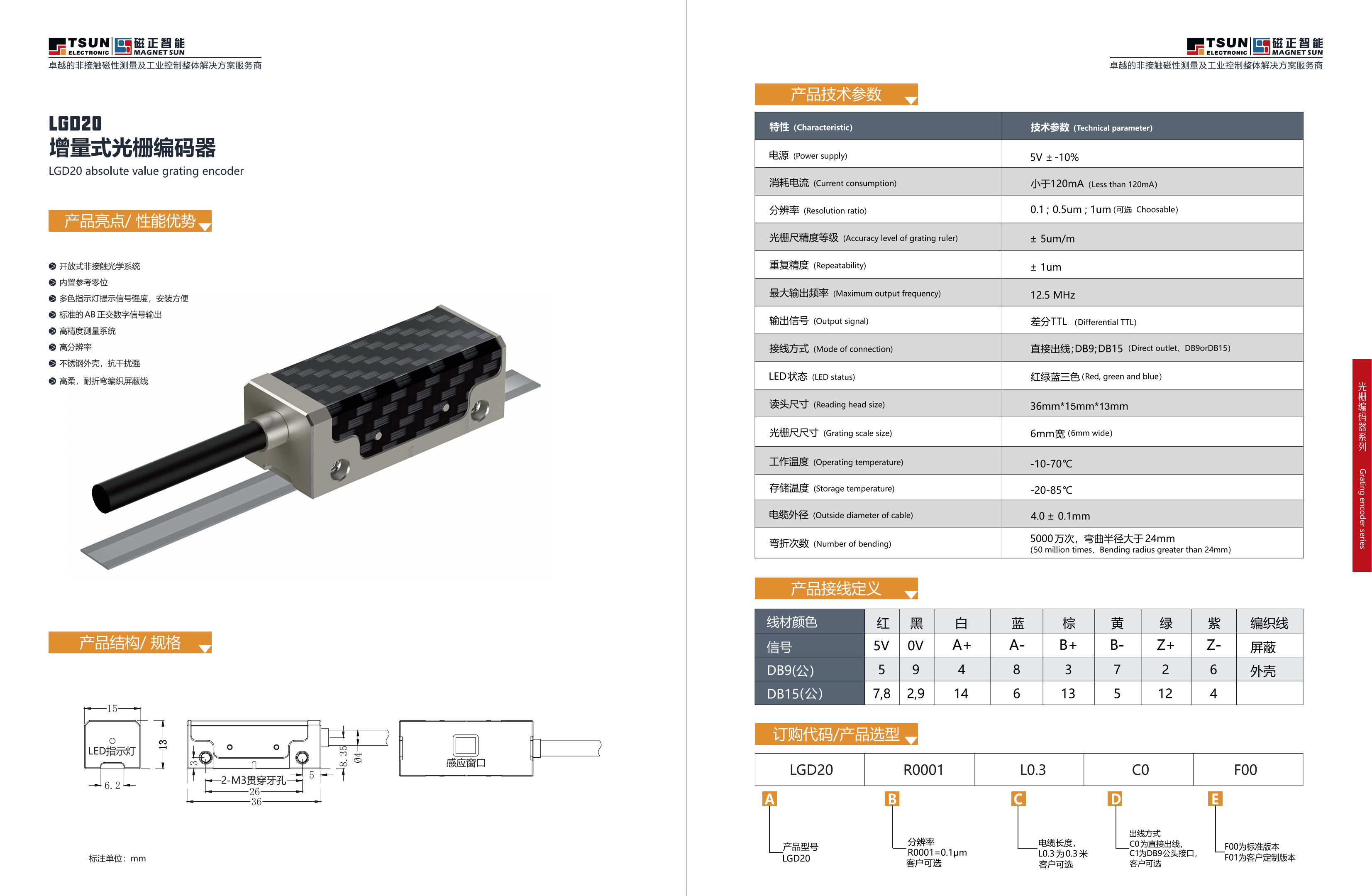

The LGD20 incremental grating encoder features a compact size, high resolution, strong load-bearing capacity, low torque, low energy consumption and stable performance. Therefore, it has been widely applied in fields such as automated manufacturing, high-end CNC machine tools and medium metrology verification.
Features and Benefits
Open non-contact optical system Built-in reference zero position; The multi-color indicator light indicates the signal strength; Easy to install; Standard AB orthogonal digital signal output High-precision measurement system High resolution Stainless steel shell, strong anti-interference ability; High-flexibility, bendable braided shielded wire.
Consult

Power supply: 5V

Current consumption: less than 120mA

Resolution: 0.1 0.5 um; 1um(optional)

The accuracy grade of the grating ruler: ±5um/m

Maximum output frequency: 12.5MHz

Repeatability accuracy: ±1um

Output signal: Differential TTL

Wiring method: Direct wiring; DB9orDB15

Reader size: 36mm*15mm*13mm

Operating temperature: -10 to 70℃

Cable bending times: 50 million times, bending radius greater than 24mm
