Current location：Home / Products / Absolute magnetic encoder
AMG5000
Absolute magnetic encoder
Product Overview
Downloads
Inquiry
Product Description
AMG5000
AMG5000
AMG5000
AMG5000
AMG5000
AMG5000
AMG5000
AMG5000
AMG5000
AMG5000
The AMG5000 is a long-stroke dual-channel absolute value magnetic gate encoder
Features and Benefits
A truly dual-channel absolute value magnetic gate encoder
The length of the periodic code is 10,000 mm
The magnetic stripe width is 20mm
The speed can reach 5m/s
Position feedback unit suitable for high-speed operation
Robust design and strong EMC compatibility
Supports serial communication protocols such as BISS-C, SSI, Tama River, Matsushita, and RS-485
The resolution can reach 0.25μm
Consult
Downloads

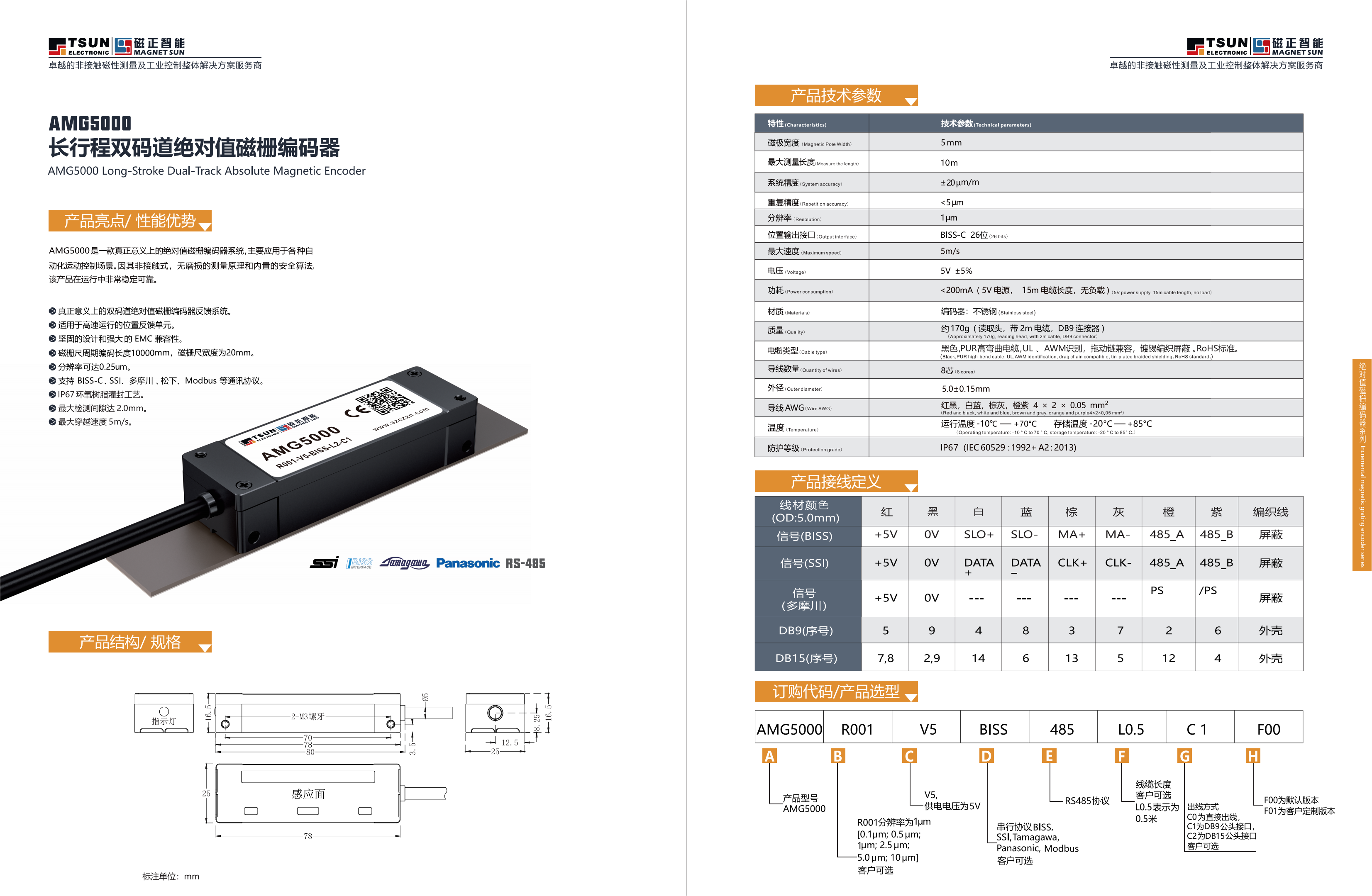

2024版产品图册(08-2)-4AMG5000
Download
Comprehensive technical support
Provide customers with full support from product customization to after-sales service
Service Support
Product Inquiry
Submit your information and we will contact you as soon as possible
AMG5000
The AMG5000 is a long-stroke dual-channel absolute value magnetic gate encoder
×
×
