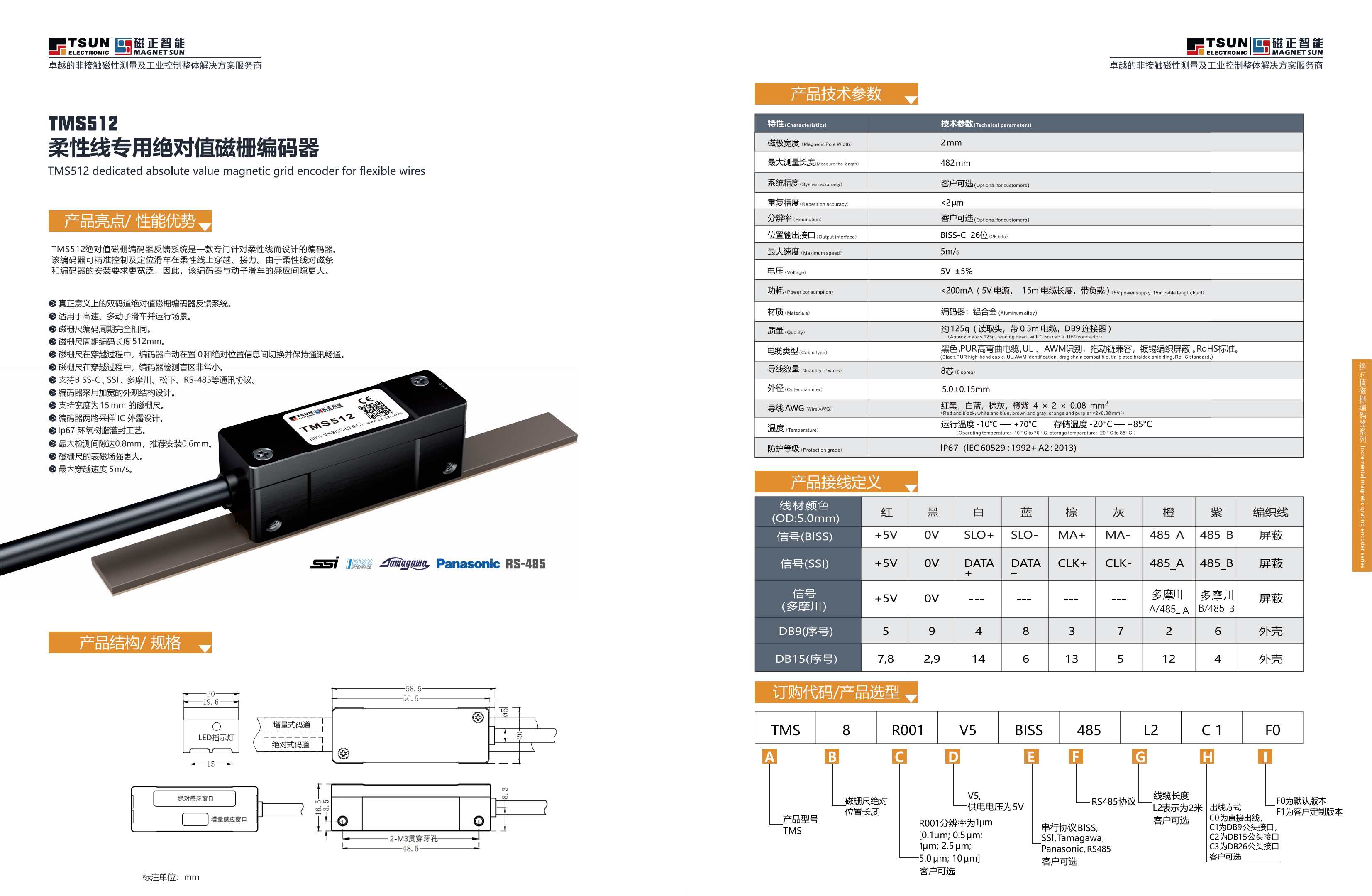

A truly dual-channel absolute value magnetic grid encoder feedback system
It is applicable to high-speed, multi-motion pulley and running scenarios
The coding period of the magnetic grating scale is exactly the same
The periodic coding length of the magnetic grating scale is 512mm
During the crossing process of the magnetic scale, the encoder automatically switches between setting to 0 and absolute position information and maintains smooth communication
During the crossing process of the magnetic scale, the blind zone detected by the encoder is very small
Supports communication protocols such as BISS-C, SSI Tama River, Panasonic, and RS-485
The encoder adopts a widened appearance structure design
Supports multiple specifications of magnetic grating rulers with widths of 12-15-20mm
The two-channel sampling IC of the encoder is exposed
IP67 epoxy resin potting process
The maximum detection gap reaches 1.0mm, and the recommended installation gap is 0.5mm
The surface magnetic field strength of the magnetic scale is greater
The maximum crossing speed is 5m/s
